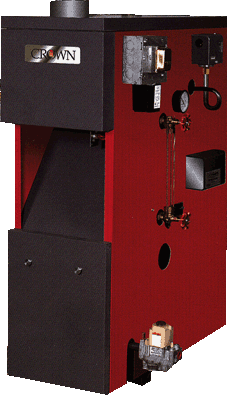

BERMUDA gas-fired steam boilers
provide a wide range of sizes
(from 69,000 to 379,000 BTU/HR input) that can
efficiently service single family homes,
multi-family residences and small businesses. An
approved chimney is required.
Crafted with rugged,
cast iron heat exchangers and stainless steel
burners, the BERMUDA
offers proven-in-service reliability, simplicity of
design and economy in its purchase price and
consumption of fuel.
The heat exchangers
are built with steel push nipples below the water
line where superior strength and resistance to
expansion and contraction is important, and cast
iron push nipples above the water line where
corrosion resistance is key. The cast iron push
nipples are larger than usually found on such units
to provide optimum steam quality.
Attractive and
durable, the powder-coated jacket resists
scratching. Plus, it’s well insulated to retain
heat. The BERMUDA
meets all national standards, and the heat exchanger
meets the specifications of the American Society of
Mechanical Engineers.
BERMUDA is the
latest in a series of designs that CROWN engineers
have created for ease of use, constructed for long
life and engineered to provide the most value for
each energy dollar. That’s CROWN’s commitment to
quality.
BERMUDA has all these features for
optimum safety and performance:
For Safety:
- Fully
assembled – ready for installation or available
as a knock-down package
- Factory tested
for flame quality, leaks, control system
operation and
overall performance
- Probe or float
low-water cut-off or optional low-water
cut-off/feeder combination
- “Redundant”
gas valve
- Spill switch
detects venting problems
- Rollout switch
detects heat exchanger blockage
- Gauge glass
- ASME pop
safety valve (set at 15 psi)
- Can be
installed on combustible floors
For Performance:
- Cast iron heat
exchanger with a 12-year limited warranty
- Stainless
steel burners with a lifetime limited warranty
- Tappings
permit installation of Mega-Stor indirect water
heater
- Isolation
relay simplifies thermostat wiring
- Standing pilot
or electronic ignition available
- Appliance
quality, powder-coated jacket
- Automatic vent
damper
- Fiber-glass
insulation to minimize wasteful heat loss
- Base and flue
constructed of aluminized steel for corrosion
resistance
- Drain valve
- Built-in draft
diverter allows boiler to fit into low spaces
